Product details:

Model number: D1001510
Product specifications: 482 * 1U-L (standard length L = 200mm, can be changed to your requirements)
Surface treatment: Sand blast, Anodized or no treatment
Colors in Stock: Black, No color
Shell structure: Extruded aluminum and aluminum sheet
Housing components: Front and rear 3mm panel + left stripe side panel + 2mm aluminum covers + 8 corner brackets + all screws included.
Shell material: 6063-T5 extruded aluminum alloy profile
Customizing service: Connector and ventilation holes machining, optional front and rear panel sizes, optional length , and optional colors.

19 inch rack module 1U dimensions
19 inch rack module 1U parts

Customizing your 19 inch rack module:

Fully customizable 19 inch rack mount module 1U manufactured by Davantech? Feel free to send us your specification and we will offer you the 3D design accordingly.

  • Integration of the electronic components and connectors in 3D.

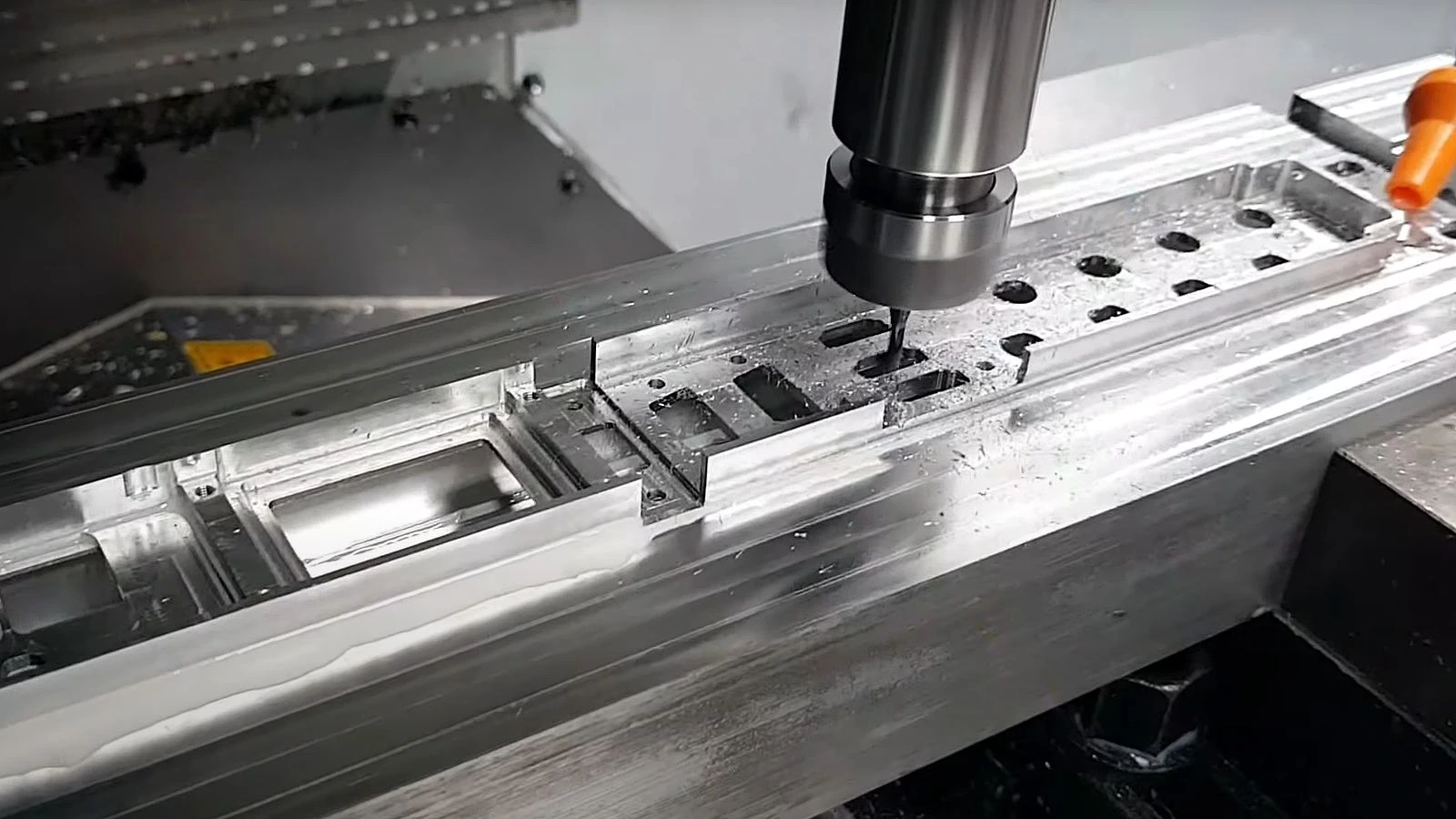

  • Designing all the cut-outs and CNC machining features.
  • Ventilation holes.
  • Inserts and stand-offs to mount printed circuit boards.
  • Making 2D production drawings.
  • Mounting brackets.
  • Silk screening or laser engraving of text and symbols.

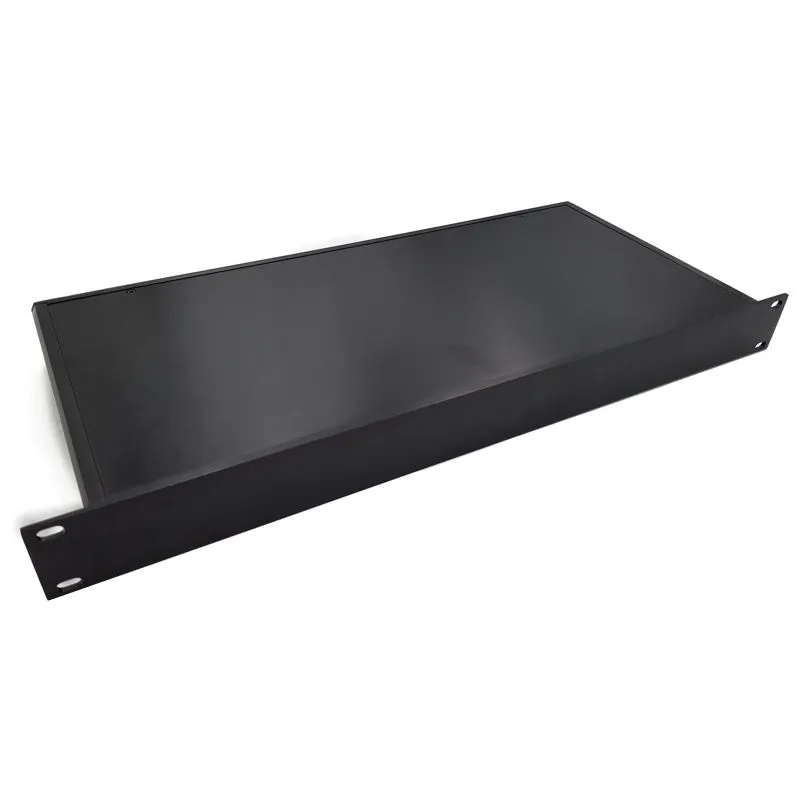

Fully customizable 19 inch rack module 1U

The many possibilities to fabricate fully customizable 19 inch rack modules of 1U.

There are enormous possibilities to fabricate fully customizable 19 inch rack mountable modules of 1U or higher. First, you have the many standard extruded enclosures available. Furthermore, these housings come in many sizes, surface finishes and colors. That is why you can send us your desired size and machining drawings and we will come up with a solution. In case you don’t have any drawings, we will make the manufacturing drawings according to your specification.

Surface finish.

Electronic enclosures made of aluminum come in different surface finishes.

A texture can be applied. Usually we have the option between no texture, brushed surface and sandblasted. Next, there you can chose to anodize or apply powder coating. The colors options are limitless.

surface finish of aluminum parts sandblasted or brushed fo aluminum enclosures and rack units

Colors for aluminum 19″ rack modules.

Nowadays there is almost no limit in colors we apply to aluminum parts. Whether it is anodizing or powder coating. Hence, for powder coating we need a RAL color.

aluminum anodizing applied to19 inch rack modules

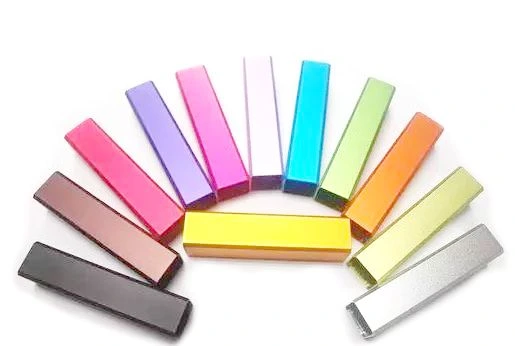

colors for aluminum enclosures anodizing
colors for aluminum anodizing

Standard extruded housing vs custom design.

You can chose to use an existing extruded housing. In that case, we will check which extrusions we can offer to produce your enclosure, based on your requirements. For your reference, we have hundreds of extrusion molds available. Furthermore, there are split extruded housings as well as housings made in one piece. Each enclosure comes with a front plate and rear plate and a set of screws to assemble. It is certainly possible to make a fully customized and personal design in case a standard casing does not fit for your application. That is why we are glad to assist you with the design and production. In addition, an extrusion mold is not very expensive. However, it requires a minimum production of 1000 kilo.

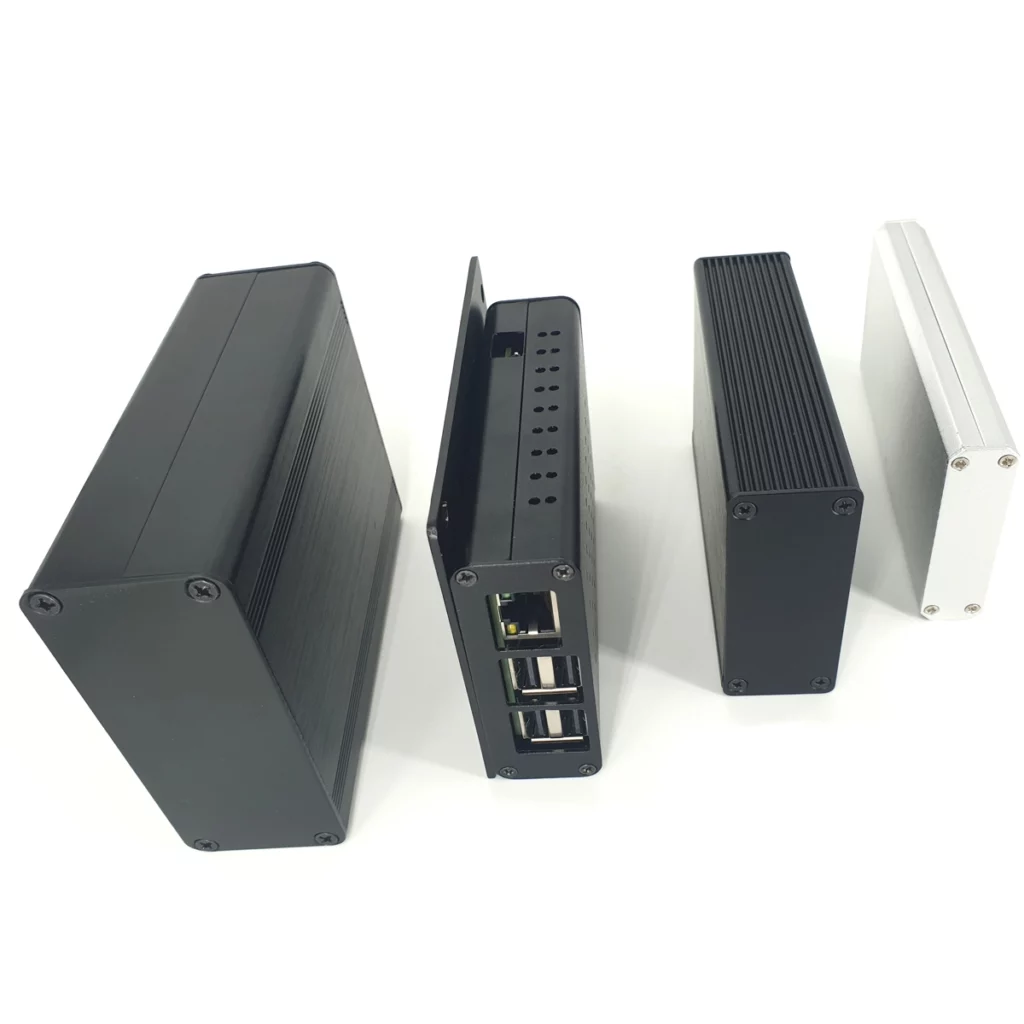

Davantech is your best choise for custom made extruded aluminum housings


A selection of standard sizes of aluminum extruded enclosures is available. Therefore you can check our catalog. On the other hand it is better when you tell us the requirements so we can check for the best solution to fit your needs.

Custom made electronic enclosures made by Davantech
