Among fabrication of different connector types, we are also an EV charging contact pin manufacturer. More specific, we make connector pins out of brass and finish them with silver plating or gold plating. Manufacturing of the EV connector pins happens on our CNC turning machines. Inside the female contact pin there are specifically designed contact springs. More specific, we calculate these springs based on customers design and electric power requirements. Important is a good electrical contact between the male and female contact pin together with an acceptable connection force. This is necessary to easily connect and disconnect the connector.
Contact pin manufacturing.
We are more than only an EV charging connector pins manufacturer. In addition to metal pin manufacturing we fabricate a broad range of standard and custom made components. Furthermore, we produce electric data and power cable assemblies. Among the manufacturing processes to make connectors and cable assemblies are injection molding, overmolding and cnc machining. Customers use our connector and cable hardware in electrical installations, power systems, electric wheel chairs, RC models, sensors and vehicles.
We offer a full service including designing, tooling, manufacturing and testing. Because of our many years of experience we are able to come up with technical solutions fast. Each project is different, thus, it needs a specific approach. Click here in case you need a quotation.

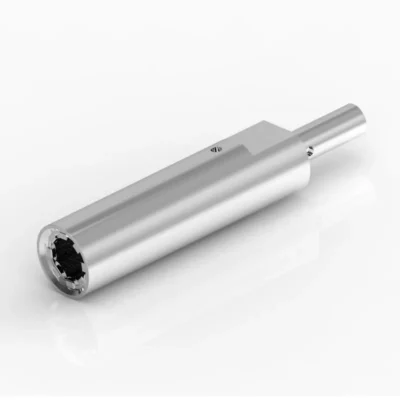

EV Charger contact pin female D6 16/32 A
This plated brass female connector pin is manufactured conform to the regulations and requirements of AC IEC standards. The brass terminal features High Current (Amps) and stable temperature.
Material: Brass
Surface finish: Silver plating
DIMENSIONS:

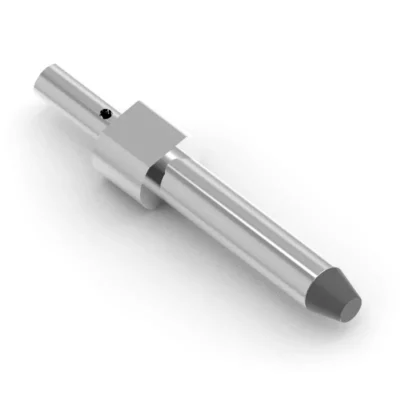

EV Charger contact pin male D6 16/32 A
This plated brass male connector pin is manufactured conform to the regulations and requirements of AC IEC standards. The brass terminal features High Current (Amps) and stable temperature.
Material: Brass
Tip material : Brass or Plastic
Surface finish: Silver plating

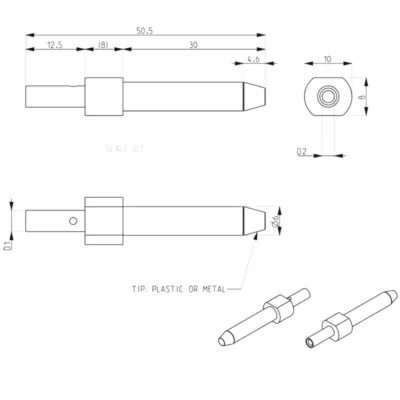

DIMENSIONS:
| Specification | |||||
| Current | Wire section | Wire diam. | AWG | D1 | D2 |
| 16A | 4mm² | 2.3mm | 11 | 4.5mm | 2.5mm |
| 32A | 6mm² | 3.9mm | 9 | 6mm | 4mm |
Features:
- Mechanical life ≧10000 times
- High current
- Low-temperature rise
- High reliability
- High mechanical durability
- Soft mating force
